AM5 / AM6 / AM8
AM5 / AM6 / AM8

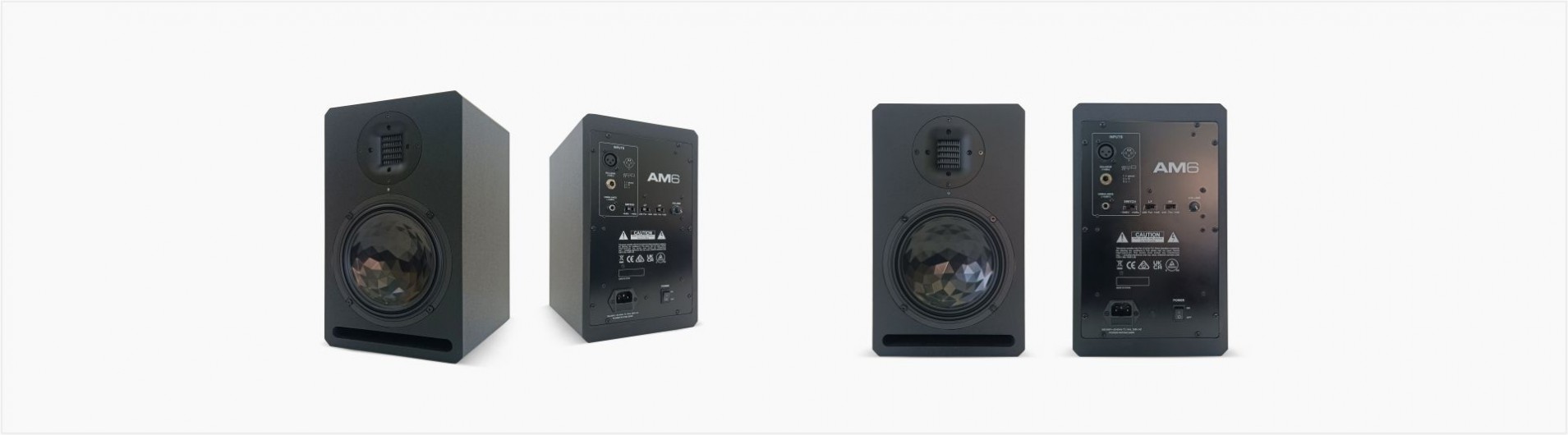

Powerful near-field 2-way studio monitor

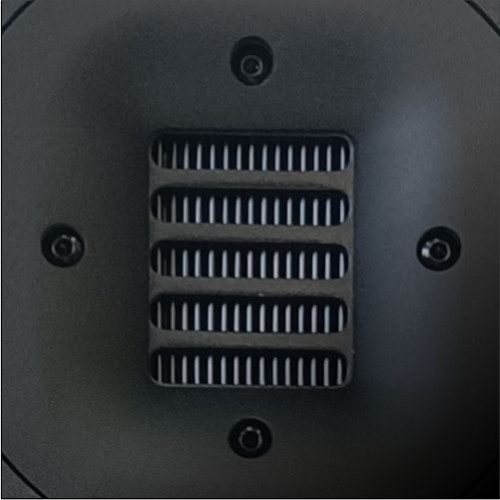

Equipped with Air Motion Transformer, provides pristine and extended high-frequency response up to 20 kHz.

The AMT tweeter is fitted to a precision waveguide, provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

Delivering true high-definition sound, enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters.

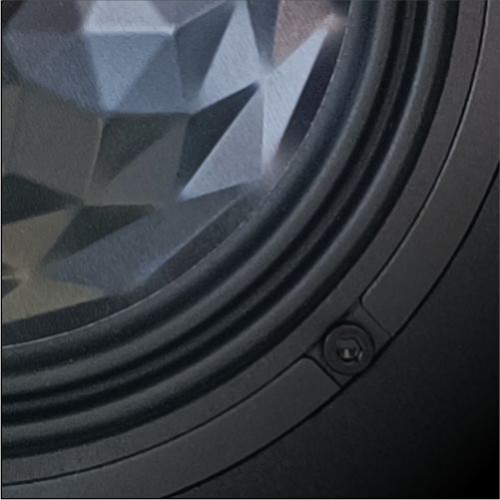

Unique crystal membrane bass driver: more than just an attractive design feature.

The crystal-shaped inverse aluminum dome is joined to the paper cone in a special gluing process to result in the desired sandwich construction. Resembling the surface of a large crystal, the aluminum-foil stamping stiffens the aluminum dome, diminishing resonances and minimizing coloration, while improving power handling and dynamics.

GALLERY
DETAILS

 AM5AM6AM8
Description:2-Way Active Studio Monitor2-Way Active Studio Monitor2-Way Active Studio Monitor
Woofer::5.25-inch crystal-shaped
inverse aluminum dome
6.5-inch crystal-shaped
inverse aluminum dome
8-inch crystal-shaped
inverse aluminum dome
Tweeter (AMT):Diaphragm area:7.4 in² (4774 mm²)
   Equiv.Diaphragm:3" (76 mm)
Diaphragm area:7.4 in² (4774 mm²)
   Equiv.Diaphragm:3" (76 mm)
Diaphragm area:7.4 in² (4774 mm²)
   Equiv.Diaphragm:3" (76 mm)
Frequency Response: 45 Hz - 20kHz45Hz-20kHz33 Hz - 20 kHz
Crossover Frequency:2.8KHz2.8 kHz2.6 kHz
Peak SPL at 1m per pair:108dB108dB108dB
Woofer Amplifier Power:100W RMS100W RMS200W RMS
Tweeter Amplifier Power:80W RMS80W RMS80W RMS
Woofer Impedance:4 ohm4 ohm4 ohm
Tweeter Impedance:6 ohm6 ohm6 ohm

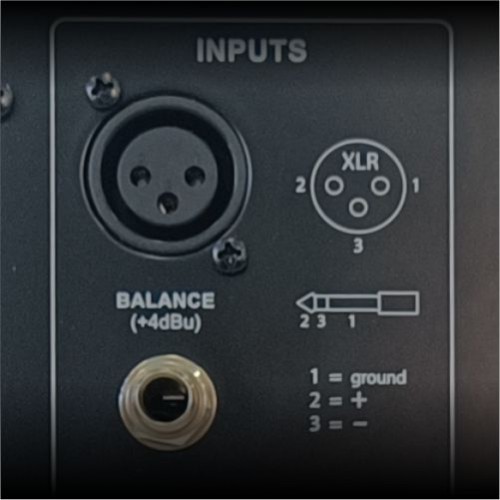

Inputs:10.XLR,TRS,RCA10.XLR,TRS,RCA10.XLR,TRS,RCA
Amplifiers Type:Class D,SigmaDSP
Internal Resolution
Class D,SigmaDSP
Internal Resolution
Class D,SigmaDSP
Internal Resolution
Input Sensitivity:Switchable +4dBu / -10dBvSwitchable +4dBu / -10dBvSwitchable +4dBu / -10dBv

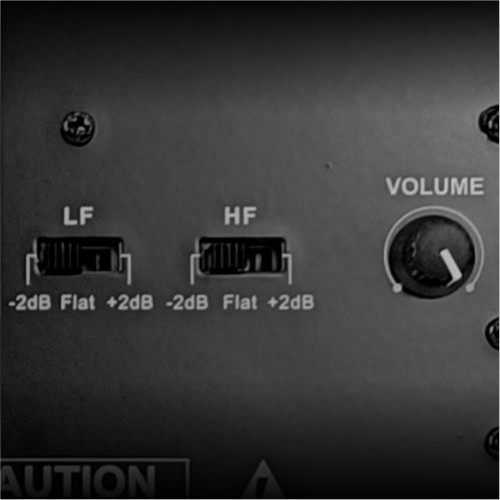

HF Trim Switch:-2dB, Flat, +2dB-2dB, Flat, +2dB-2dB, Flat, +2dB
LF Trim Switch:-2dB, Flat, +2dB-2dB, Flat, +2dB-2dB, Flat, +2dB
LED Indicators:On FrontOn FrontOn Front
Power Required:100-240VAC 50/60Hz100-240VAC 50/60Hz100-240VAC 50/60Hz
Cabinet:Vinyl-laminated, High Acoustic Efficient MDFVinyl-laminated, High Acoustic Efficient MDFVinyl-laminated, High Acoustic Efficient MDF
Measurements:W180Hx300xD210mmW190xH315xD230mmW260xH398xD285mm
















TECH SPECS
  • Description:
    2 Way Bi-amplified Near-field Studio Monitor
  • LF Driver:
    5.25'' / 6.5'' / 8''
  • HF Driver:
    Diaphragm area:7.4 in² (4774 mm²) Equiv.Diaphragm:3" (76 mm)
  • Amplifiers Type:
    Class D,SigmaDSP Internal Resolution
  • LF Power AMP:
    100W RMS / 100W RMS / 200W RMS
  • HF Power AMP:
    80W RMS
  • LF Trim:
    -2dB, Flat, +2dB
  • HF Trim:
    -2dB, Flat, +2dB
  • Sensitivity:
    +4dBu, -10dBv
  • Input type:
    XLR, TRS, RCA
  • Voltage:
    100-240V~, 50/60Hz
<
>
