CTA18 PRO
CTA18 PRO

Soffit Mount Studio Monitor

Crafted with meticulous attention to detail, soffit mount studio monitors are designed to achieve an exceptionally flat frequency response across the entire audible spectrum. Incorporating cutting-edge technologies, such as premium drivers, finely tuned enclosures, and advanced amplification systems, these monitors ensure the accurate reproduction of every nuance and subtlety within the audio signal, resulting in unparalleled clarity and fidelity.

Whether found in the renowned recording studios or enhancing the monitoring experience of home-based project studios striving for professional-grade quality, soffit mount studio monitors are celebrated for their consistent performance and reliability. Serving as the foundation of any discerning audio monitoring setup, these monitors represent the perfect harmony between artistic vision and scientific precision in the quest for sonic perfection.

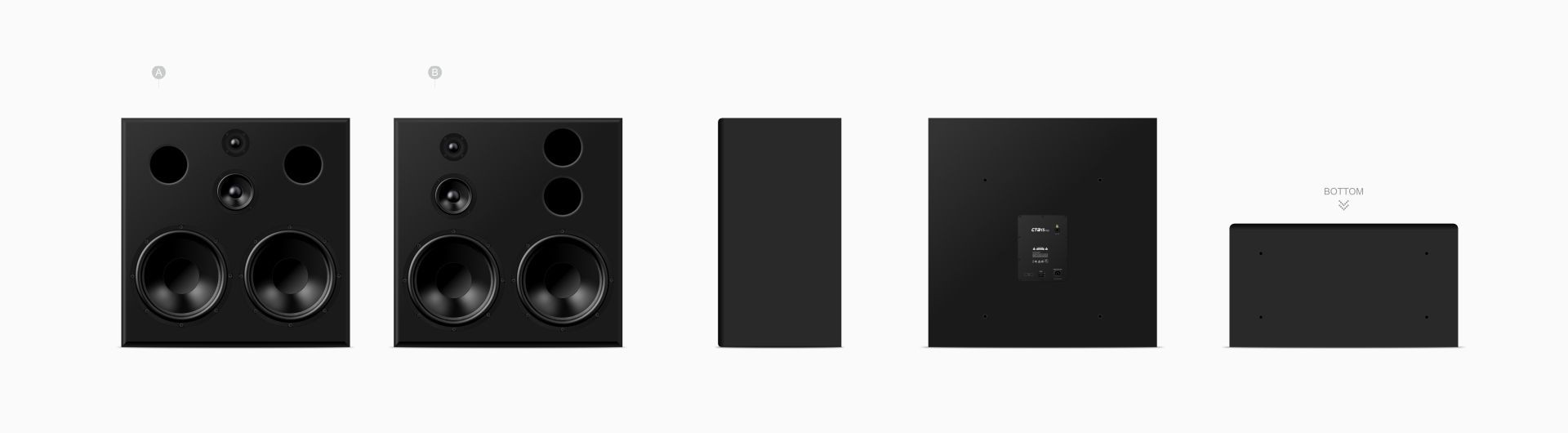

GALLERY
DETAILS

CTA18 PRO
Description: 3-Way Active Soffit Mount Monitor

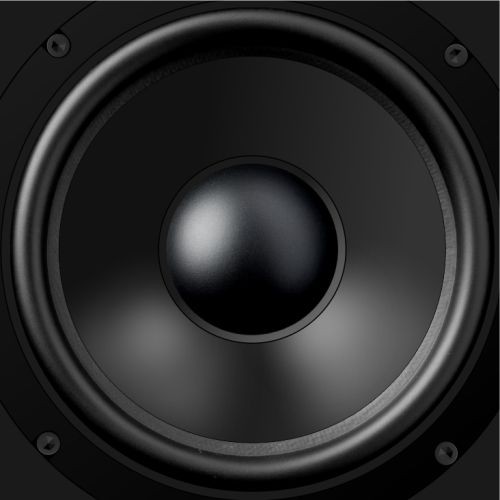

LF Driver: 18″ x 2
MF Driver: 6.5″ x 1

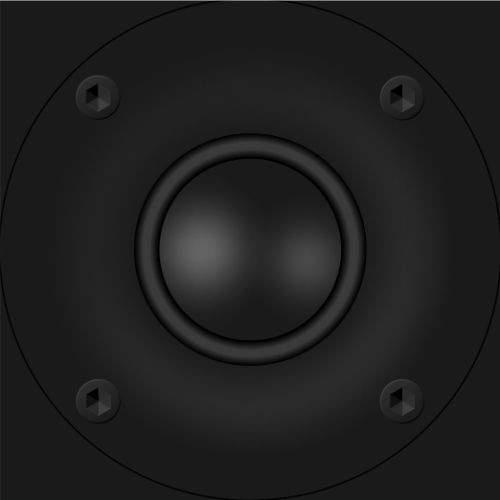

HF Driver: 1.5″ x 1
Amplifier Type: Class D, SigmaDSP Internal Resolution
LF Amplifier Power (RMS): 2 x 200W
MF Amplifier Power: 1 x 100W
HF Amplifier Power: 1 x 50W
Frequency Response: 20Hz-20kHz
Crossover Frequency: 300Hz, 3kHz

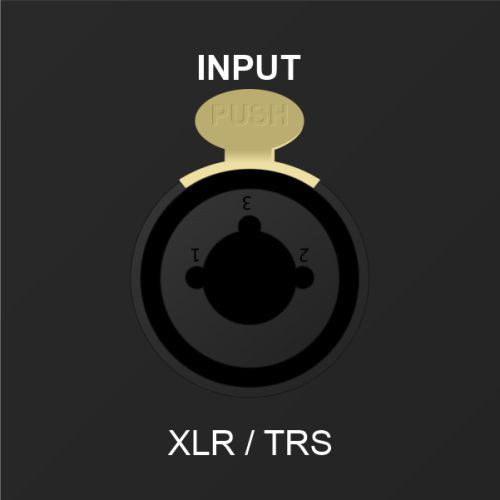

Inputs: XLR & TRS Combo Jack
Input Impedance: 20KHz
Input Sensitivity: 2V

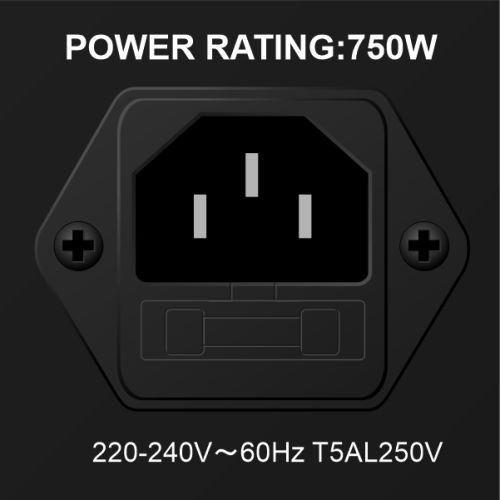

Power Required: 100-120VAC 60Hz or 220-240VAC 50Hz
Protection: Undervoltage,Overtemperature, Clipping,and Short Circuit Protection
LED Indicators: On front
Cabinet: Painting / Vinyl-laminated, high acoustic efficient MDF
Measurement: W1020xH1020xD550mm

TECH SPECS
  • LF Driver:
    18″ x 2
  • MF Driver:
    6.5″ x 1
  • HF Driver:
    1.5″ x 1
  • Amplifier Type:
    Class D, SigmaDSP Internal Resolution
  • Frequency Response:
    20Hz-20kHz
  • Crossover Frequency:
    300Hz, 3kHz
  • Inputs:
    XLR & TRS Combo Jack
  • Input Impedance:
    20KHz
  • Input Sensitivity:
    2V
<
>
