CTA10 PRO
CTA10 PRO

Soffit Mount Studio Monitor

By seamlessly integrating into the wall or ceiling of a studio space, CTAPRO 10 provide a sleek and professional look while offering unparalleled sound quality. The direct mounting method eliminates the need for speaker stands, reducing clutter and maximizing floor space for other studio equipment. But it´s not just about aesthetics - soffit mount studio monitors also deliver exceptional audio performance. With reduced vibration and resonance, these monitors produce clear and accurate sound, allowing for precise monitoring and mixing.

Whether you´re a professional audio engineer, a musician, or a dedicated audiophile, CTAPRO 10 offer a top-of-the-line listening experience that will elevate your music production to new heights.

GALLERY
DETAILS

CTA10 PRO
Description: 3-Way Active Soffit Mount Monitor

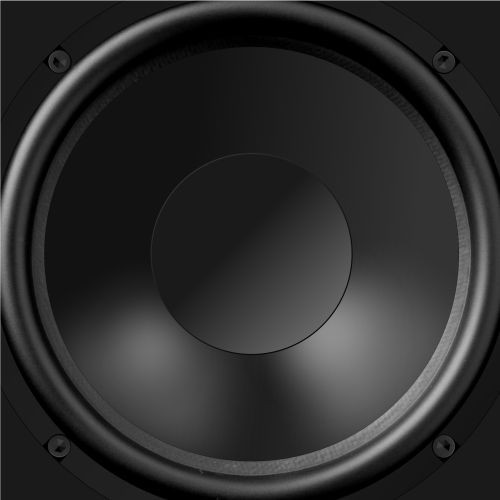

LF Driver: 10″ x 2

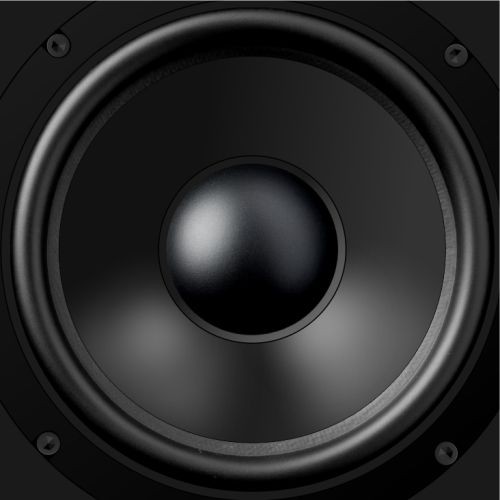

MF Driver: 6.5″ x 1

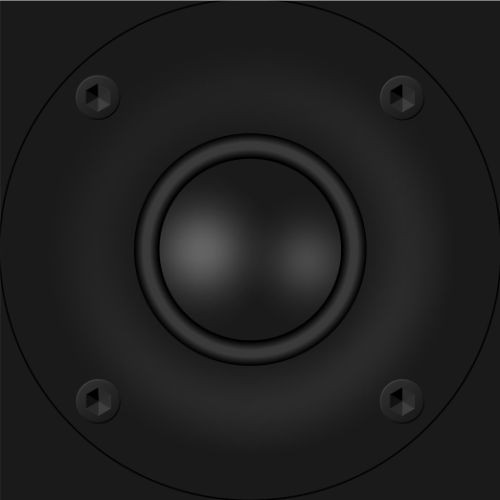

HF Driver: 1.5″ x 1
Amplifier Type: Class D, SigmaDSP Internal Resolution
LF Amplifier Power (RMS): 2 x 200W
MF Amplifier Power: 1 x 100W
HF Amplifier Power: 1 x 50W
Frequency Response: 33Hz-20kHz
Crossover Frequency: 300Hz, 3kHz

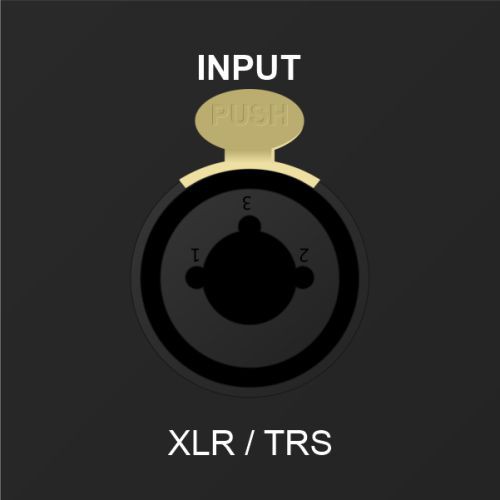

Inputs: XLR & TRS Combo Jack
Input Impedance: 20KHz
Input Sensitivity: 2V

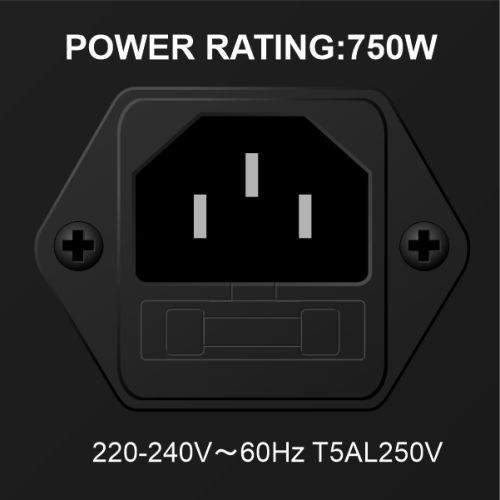

Power Required: 100-120VAC 60Hz or 220-240VAC 50Hz
Protection: Undervoltage,Overtemperature, Clipping,and Short Circuit Protection
LED Indicators: On front
Cabinet: Painting / Vinyl-laminated, high acoustic efficient MDF
Measurement: W610xH610xD350mm

TECH SPECS
  • LF Driver:
    10″ x 2
  • MF Driver:
    6.5″ x 1
  • HF Driver:
    1.5″ x 1
  • Amplifier Type:
    Class D, SigmaDSP Internal Resolution
  • Frequency Response:
    33Hz-20kHz
  • Crossover Frequency:
    300Hz, 3kHz
  • Inputs:
    XLR & TRS Combo Jack
  • Input Impedance:
    20KHz
  • Input Sensitivity:
    2V
<
>
