SUB10M
SUB10M

The SUB10M is a 10" Powered Studio Subwoofer delivers deep, powerful bass to let you hear what´s going on in the bottom octave of your recordings. SUB10M Powered Studio Monitors are specifically designed from start to finish for your music. Optimizing features include an enhanced waveguide system for a wider sweet spot and custom-tuned rear porting for smooth, extended bass response. With a wide range of full-range options and a powerful studio sub, you can be sure SUB10M has the right setup for your studio. Dragon designed the SUB10M for high-output low-end performance, increasing your SPL capabilities while freeing up your mains for critical monitoring of the midrange and high frequencies.

GALLERY
DETAILS

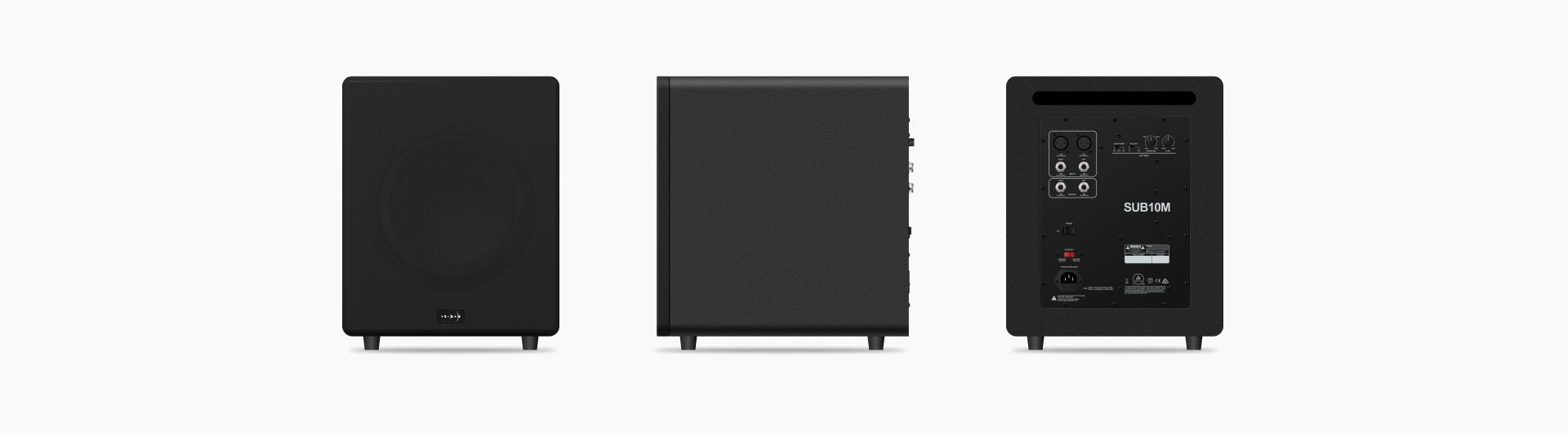

This subwoofer features a 10" glass-aramid-composite driver powered by a beefy 120W amp. The compact enclosure has rear porting for smooth low-end extension, and rubber feet to minimize vibration and unwanted resonance. From the added punch and bass extension provided by the custom-tuned ports to the rugged all-wood cabinet packed with sound-tightening acoustic absorption material, you can be confident that SUB10M monitors are revealing the full-range, natural character that your music deserves. Fine tune your sound with high and low frequency filters. Connect to just about any source with available XLR, 1/4”and RCA inputs. Add a SUB10M studio subwoofer to your system for chest-pounding punch.

TECH SPECS
  • Description:
    10‘’ Active subwoofer
  • Amplifier:
    Class AB 240W RMS
  • Frequency Response:
    35Hz-180Hz

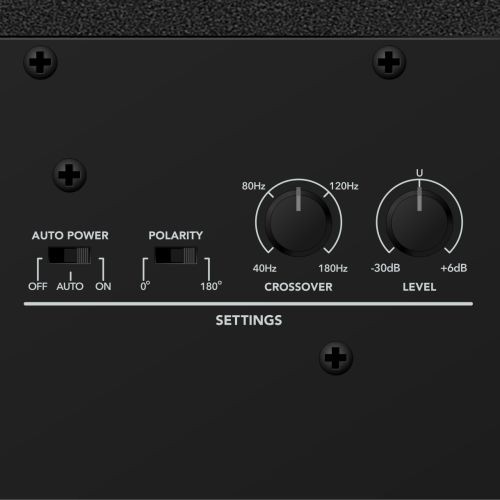

  • Low-pass Filter Frequency:
    40Hz-180Hz
  • Phase Switch:
    0° or 180°
  • SPL:
    119dB
  • Inputs:
    2×XLR、2×TRS
  • Output:
    2×TRS

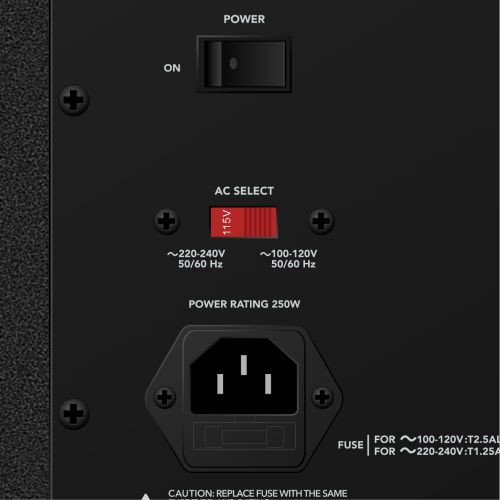

  • Voltage:
    100-120V~ 50/60Hz or 220-240V~ 50/60Hz
  • Measurements:
    W320xH381xD381mm
  • Weight
    27.3 lb 12.4 kg
<
>
