CTA15 PRO
CTA15 PRO

Soffit Mount Studio Monitor

With meticulous attention to detail, soffit mount studio monitors are intricately engineered to achieve an exceptionally flat frequency response spanning the entire audible spectrum. Utilizing state-of-the-art technologies, including top-tier drivers, finely tuned enclosures, and advanced amplification systems, these monitors ensure the faithful reproduction of every nuance and subtlety within the audio signal, thereby delivering unparalleled clarity and fidelity.

In professional recording and mixing environments, where the precision of sound reproduction is of utmost importance, soffit mount studio monitors serve as indispensable tools for evaluating the true sonic characteristics of audio recordings. Their capability to unveil even the slightest sonic imperfections and nuances empowers engineers and producers to make well-informed decisions throughout the production process, encompassing recording, mixing, and mastering, ultimately resulting in audio productions of exceptional quality and clarity.

GALLERY
DETAILS

CTA15 PRO

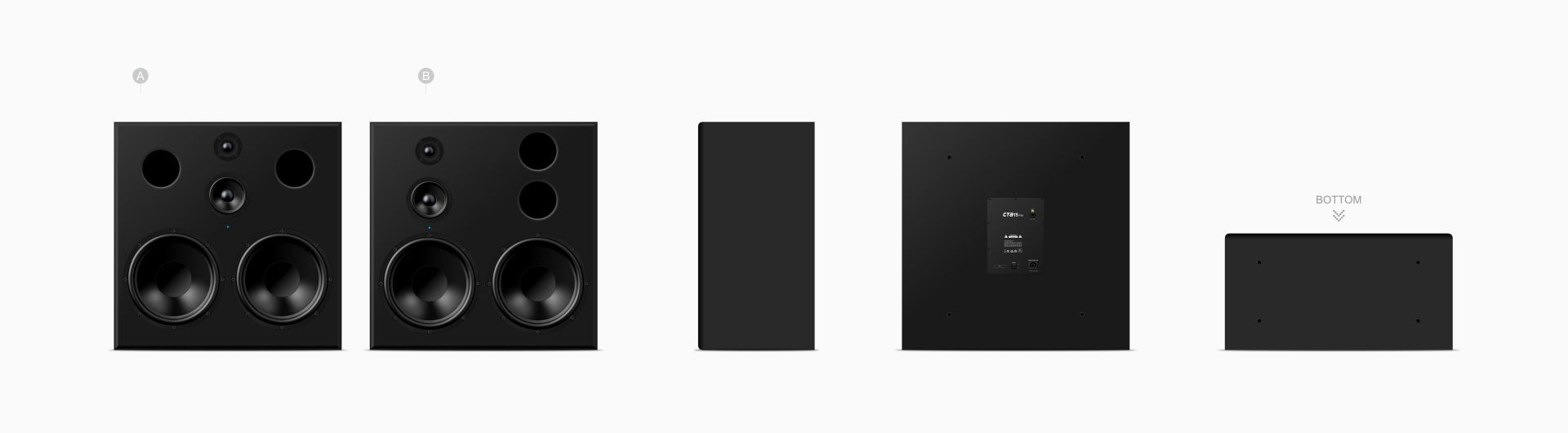

Description: 3-Way Active Soffit Mount Monitor

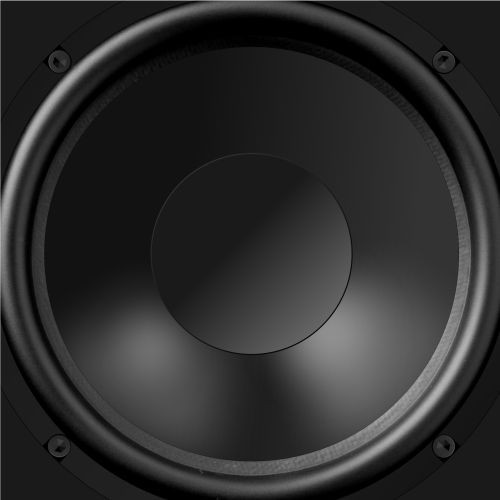

LF Driver: 15″ x 2

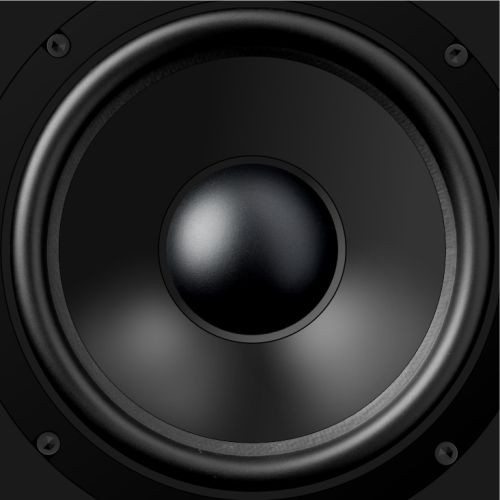

MF Driver: 6.5″ x 1

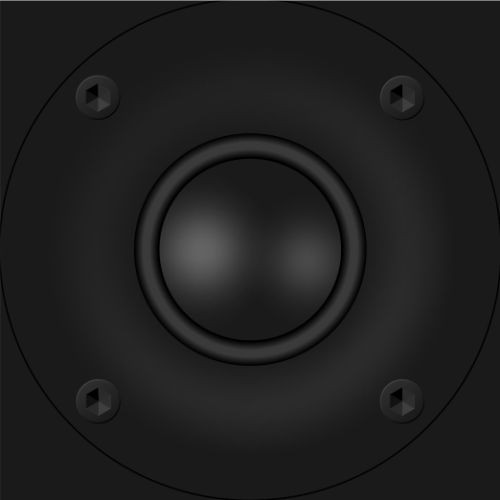

HF Driver: 1.5″ x 1
Amplifier Type: Class D, SigmaDSP Internal Resolution
LF Amplifier Power (RMS): 2 x 200W
MF Amplifier Power: 1 x 100W
HF Amplifier Power: 1 x 50W
Frequency Response: 25Hz-20kHz
Crossover Frequency: 300Hz, 3kHz

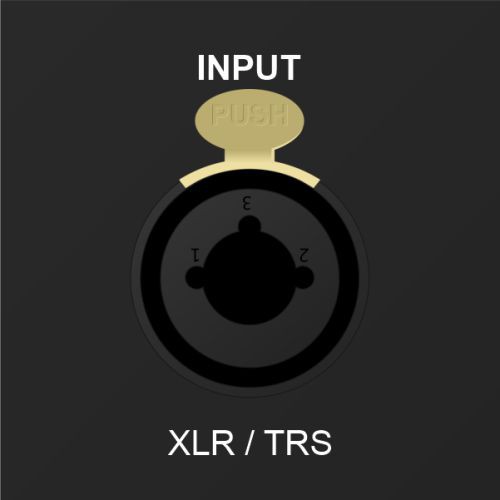

Inputs: XLR & TRS Combo Jack
Input Impedance: 20KHz
Input Sensitivity: 2V

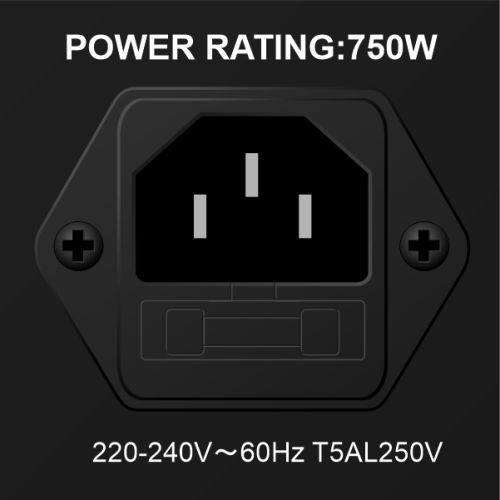

Power Required: 100-120VAC 60Hz or 220-240VAC 50Hz
Protection: Undervoltage,Overtemperature, Clipping,and Short Circuit Protection
LED Indicators: On front
Cabinet: Painting / Vinyl-laminated, high acoustic efficient MDF
Measurement: W880xH880xD450mm

TECH SPECS
  • LF Driver:
    15″ x 2
  • MF Driver:
    6.5″ x 1
  • HF Driver:
    1.5″ x 1
  • Amplifier Type:
    Class D, SigmaDSP Internal Resolution
  • Frequency Response:
    25Hz-20kHz
  • Crossover Frequency:
    300Hz, 3kHz
  • Inputs:
    XLR & TRS Combo Jack
  • Input Impedance:
    20KHz
  • Input Sensitivity:
    2V
<
>
