CTA12 PRO
CTA12 PRO

Soffit Mount Studio Monitor

With painstaking attention to detail, soffit mount studio monitors are meticulously engineered to achieve an exceptionally flat frequency response spanning the entire audible spectrum. Employing state-of-the-art technologies including top-tier drivers, finely tuned enclosures, and advanced amplification systems, these monitors guarantee the faithful reproduction of every nuance and subtlety within the audio signal, delivering unparalleled clarity and fidelity.

In professional recording and mixing settings, where the accuracy of sound reproduction is paramount, soffit mount studio monitors serve as indispensable tools for assessing the true sonic characteristics of audio recordings. Their ability to reveal the most minute sonic imperfections and nuances empowers engineers and producers to make informed decisions throughout the production process, from recording and mixing to mastering, resulting in audio productions of exceptional quality and clarity.

GALLERY
DETAILS

CTA12 PRO
Description: 3-Way Active Soffit Mount Monitor

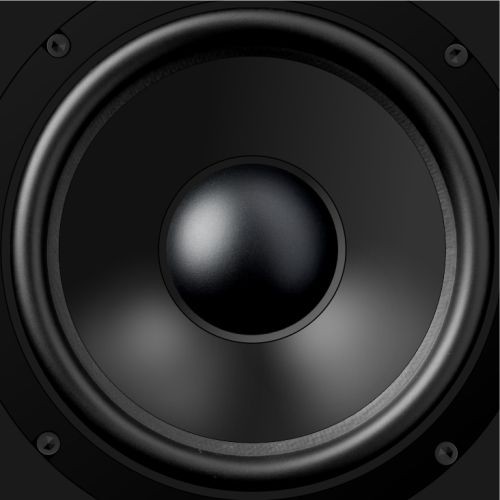

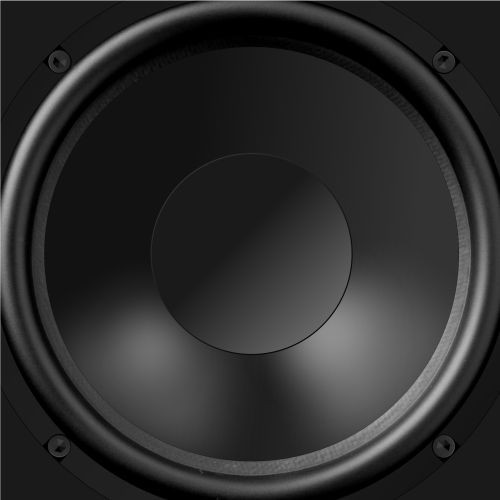

LF Driver: 12″ x 2
MF Driver: 6.5″ x 1

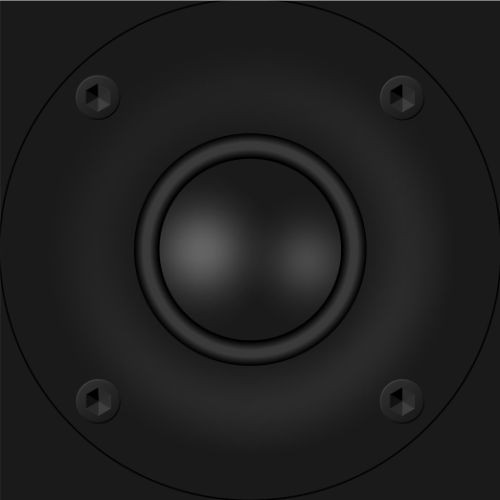

HF Driver: 1.5″ x 1
Amplifier Type: Class D, SigmaDSP Internal Resolution
LF Amplifier Power (RMS): 2 x 200W
MF Amplifier Power: 1 x 100W
HF Amplifier Power: 1 x 50W
Frequency Response: 30Hz-20kHz
Crossover Frequency: 300Hz, 3kHz

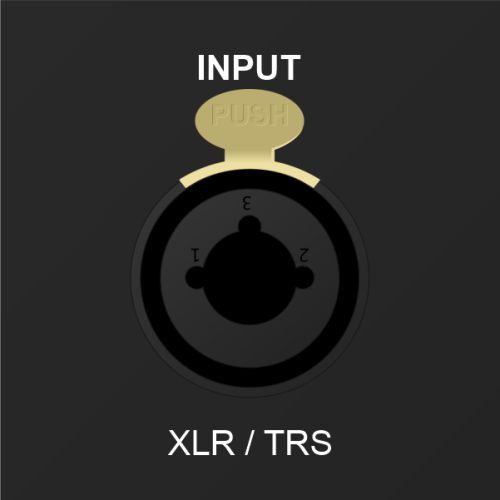

Inputs: XLR & TRS Combo Jack
Input Impedance: 20KHz
Input Sensitivity: 2V

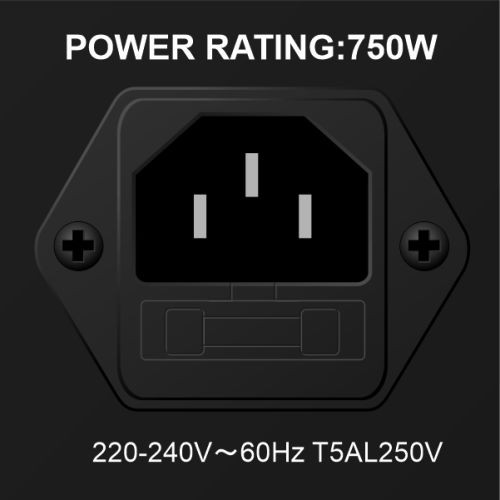

Power Required: 100-120VAC 60Hz or 220-240VAC 50Hz
Protection: Undervoltage,Overtemperature, Clipping,and Short Circuit Protection
LED Indicators: On front
Cabinet:Painting / Vinyl-laminated, high acoustic efficient MDF

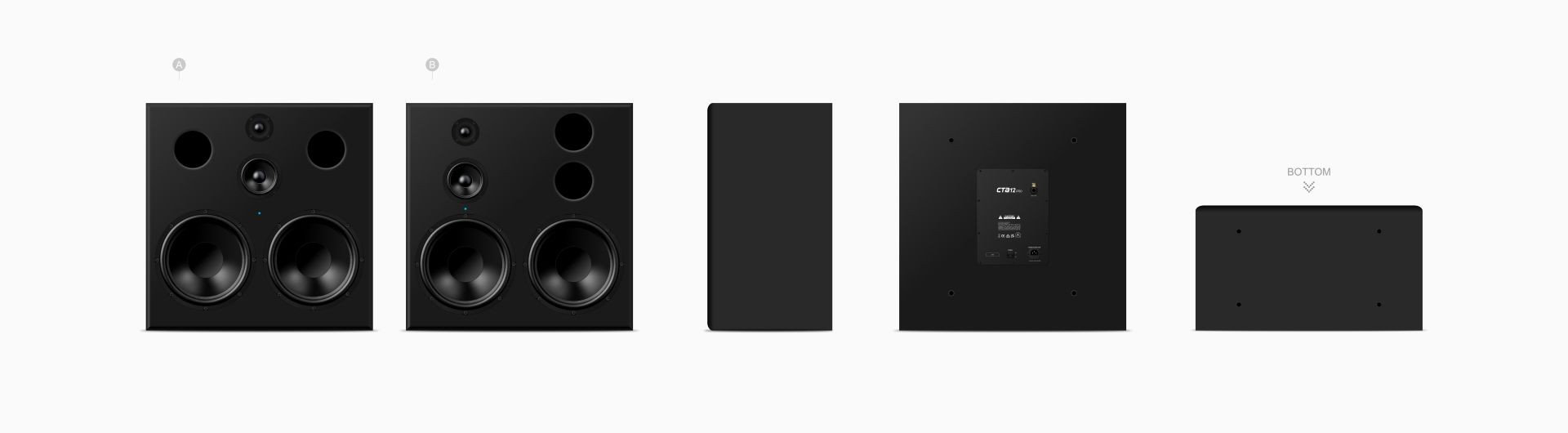

Measurement: W700xH700xD385mm

TECH SPECS
  • LF Driver:
    12″ x 2
  • MF Driver:
    6.5″ x 1
  • HF Driver:
    1.5″ x 1
  • Amplifier Type:
    Class D, SigmaDSP Internal Resolution
  • Frequency Response:
    30Hz-20kHz
  • Crossover Frequency:
    300Hz, 3kHz
  • Inputs:
    XLR & TRS Combo Jack
  • Input Impedance:
    20KHz
  • Input Sensitivity:
    2V
<
>
