KARMA PRO10
KARMA PRO10

Soffit Mount Studio Monitor

KARMA PRO10 as a Soffit Mount Studio Monitor, offering unparalleled accuracy and precision for sound engineers, producers, and musicians.

This mounting method eliminates unwanted reflections and resonances, providing an environment where critical listening can take place with utmost clarity and fidelity.

KARMA PRO10 is designed to deliver an exceptionally flat frequency response across the audible spectrum, ensuring that every nuance and detail of the audio signal is faithfully reproduced. It is engineered with advanced technologies such as high-quality drivers, precision-tuned enclosures, and sophisticated amplification systems to achieve sonic transparency and accuracy.

GALLERY
DETAILS

KARMA PRO10

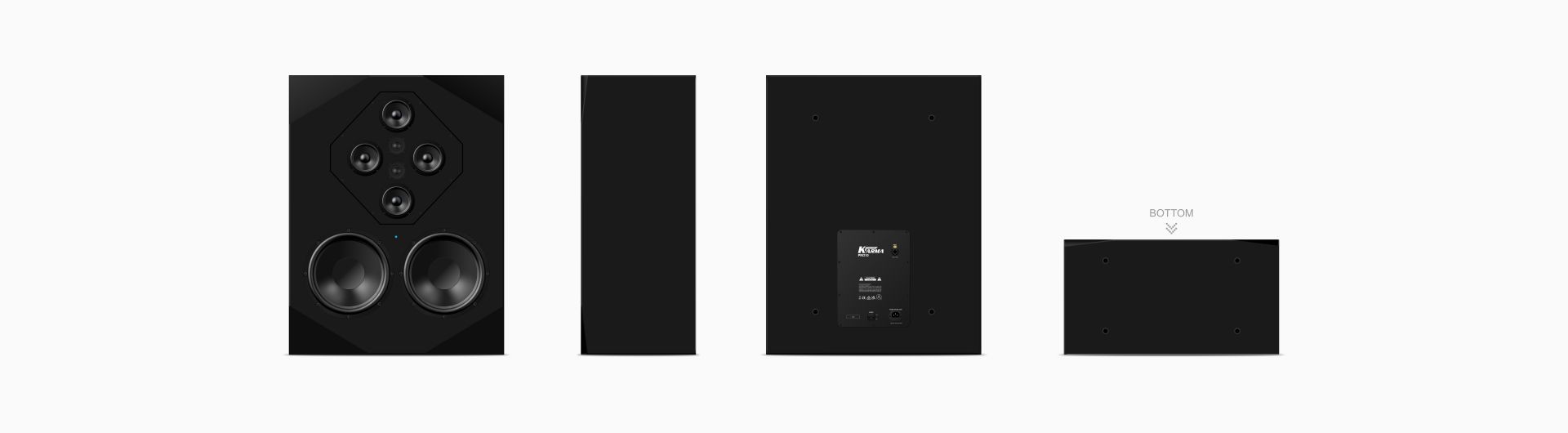

Description 3-Way Active Soffit Mount Monitor

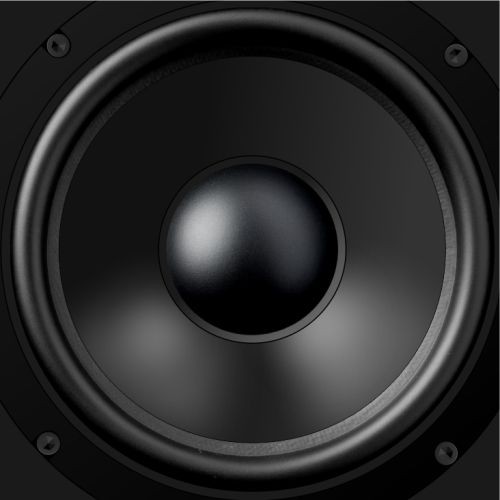

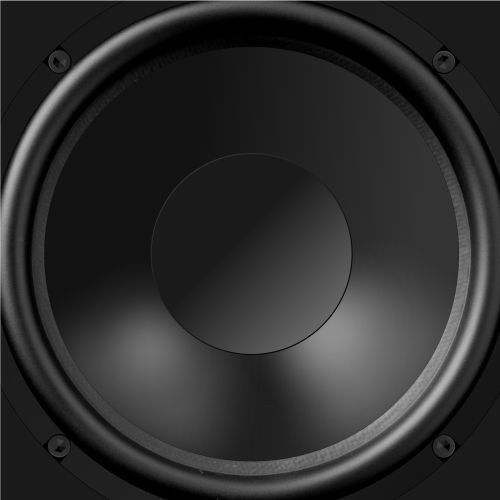

LF Driver: 10″x2
MF Driver: 4″x4

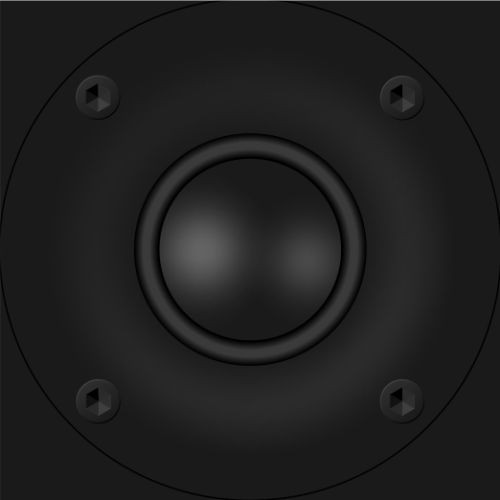

HF Driver: 1″x2
Amplifier Type: Class D, SigmaDSP Internal Resolution
LF Amplifier Power (RMS): 200W x 2
MF Amplifier Power: 50W x 2
HF Amplifier Power: 50W x 2
Frequency Response: 33Hz-20kHz
Crossover Frequency: 300Hz, 3kHz

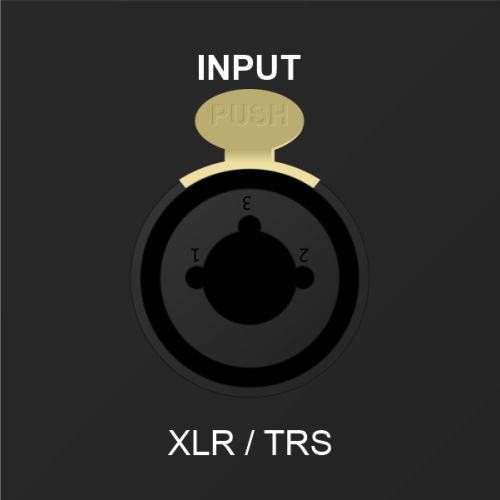

Inputs: XLR & TRS Combo Jack
Input Impedance: 20KHz
Input Sensitivity: 2V

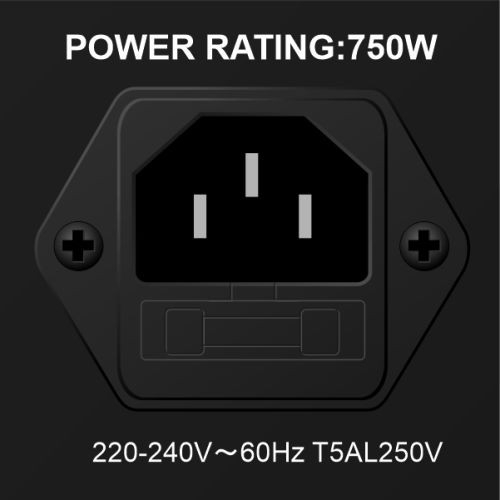

Power Required: 100-120VAC 60Hz or 220-240VAC 50Hz
Protection: Undervoltage,Overtemperature, Clipping,and Short Circuit Protection
LED Indicators: On front
Cabinet: Painting / Vinyl-laminated, high acoustic efficient MDF
Measurement: W610xH810xD350mm





TECH SPECS
  • LF Driver:
    10″x2
  • MF Driver:
    4″x4
  • HF Driver:
    1″x2
  • Amplifier Type:
    Class D, SigmaDSP Internal Resolution
  • Frequency Response:
    33Hz-20kHz
  • Crossover Frequency:
    300Hz, 3kHz
  • Inputs:
    XLR & TRS Combo Jack
  • Input Impedance:
    20KHz
  • Input Sensitivity:
    2V
<
>
